AT-OCS-900N Sensor Setup with FlexO
Sensors works in combination with an oomnis navigator tablet. You need to have a functioning and properly setup navigator in order to fully utilize the sensor capabilities.
For optimal performance, the configuration Motion Off Event shall not be less than 3 minutes in the Sensors setup section of the left sidebar menu.
Atlona Sensor Setup
Open the Atlona AT-OCS-900N administration page and login using the provided credentials.
On the left sidebar menu, select Protocols.

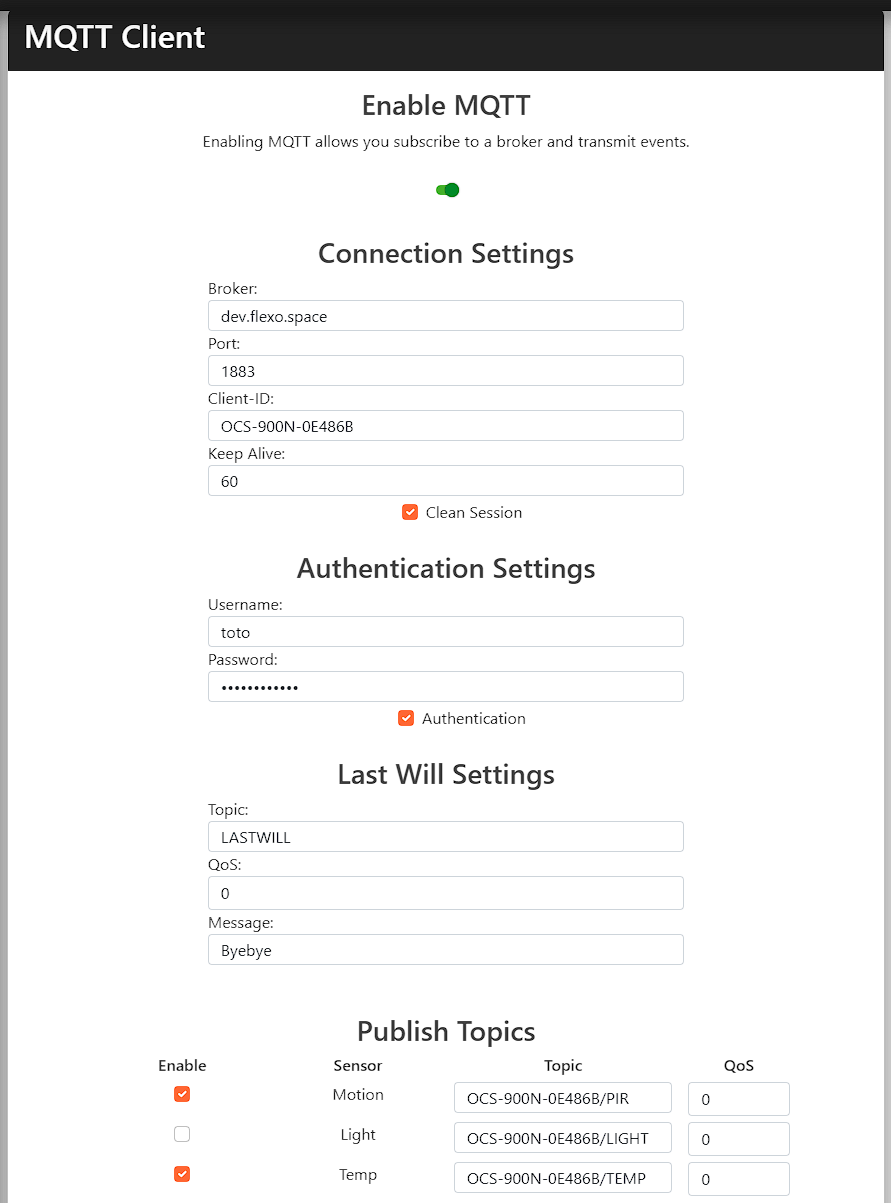

Under MQTT Client, specify the required informaton as below:
Under Connection Settings:
Broker: The ip address or hostname of the MQTT broker the sensor will connect to (refer to your FlexO representative for confirmation).
Port: The port used to connect to the MQTT broker (1883 by default - refer to your FlexO representative for confirmation).
Client-ID: Keep the Atlona client id that is provided by default. In case a change is required, the Client-ID must be with the following format "OCS-900N-" and whatever value you need.
Keep Alive: 60 (default value)
Clean Session checkbox is enabled.
Under Authentication Settings:
Username: The username required to connect to the MQTT broker (refer to your FlexO representative for confirmation).
Password: The password required to connect to the MQTT broker (refer to your FlexO representative for confirmation).
Under Last Will Settings:
Topic: LASTWILL
QoS: 0
Message: Byebye
Under Publish Topics:
Enable the Motion and Temp checkboxes (Note: Light sensor is currently not used by FlexO. In case a special scenario is required, this may require a specific integration).
Set the Topic using the format Client-ID/PIR for the Motion Sensor, and keep the QoS at 0.
Set the Topic using the format Client-ID/TEMP for the Temp Sensor, and keep the QoS at 0.
Click Save to complete the sensor setup.
FlexO Setup
In FlexO, open the administration dashboard, navigate to the resource your wish to add the sensor (e.g., Room or Desk, ...).
Under the Resource setup page, click on the Devices icon next to the selected room

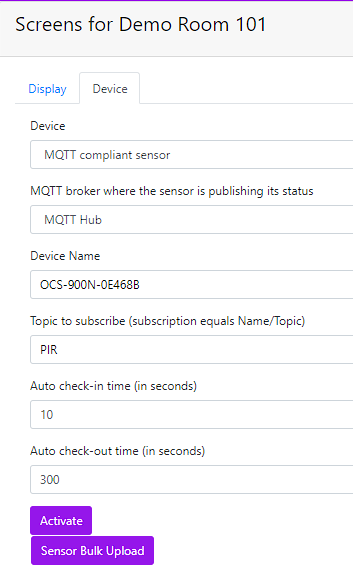

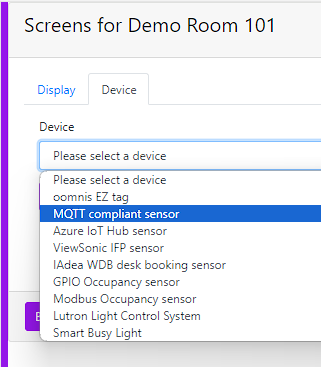

Open the Device tab, and select the MQTT compliant sensor type of device
Select the appropriate MQTT broker that the sensor will connect to (Note: you will need to create the required MQTT broker before hand).
Input the sensor Client-ID (defined previously) in the Device Name field.
Input the topic PIR in the Topic field.
Leave Auto check-in and Auto check-out with the default provided values.

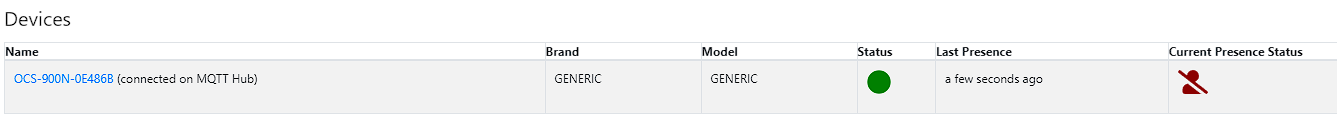

Click Activate to add and enable the sensor.
Restart the Atlona sensor to complete the setup operation.
