How to retrieve Media4Display diagnostic logs using MediaContact on Android

How to retrieve Media4Display diagnostic logs using MediaContact on Android

The easiest way to retrieve Media4Display diagnostic logs on Android is simply to create a process in MediaContact.

In a custom process folder, create a new process.

Process trigger initiative: Server
Population: create and select the population you want to retrieve the data from
Connection: use a server initiated connection

Now you need to create two tasks according to this structure

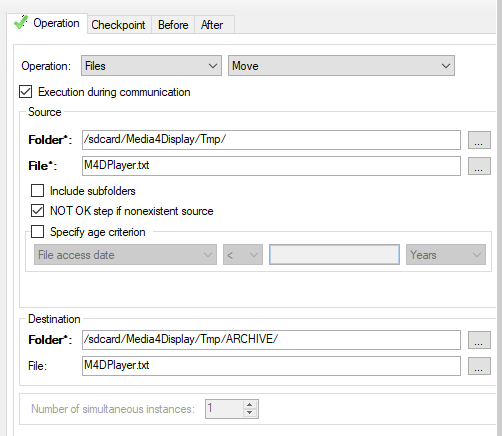

The first step (MOV PLAYER TXT) is a File management > Station task.
The task detail:
Operation: Files | Move
☑ Execution during communication
  1. Source Folder: /sdcard/Media4Display/Tmp/
  2. Source File: M4DPlayer.txt
  3. Destination Folder: /sdcard/Media4Display/Tmp/ARCHIVE/
  4. Destination File: M4DPlayer.txt

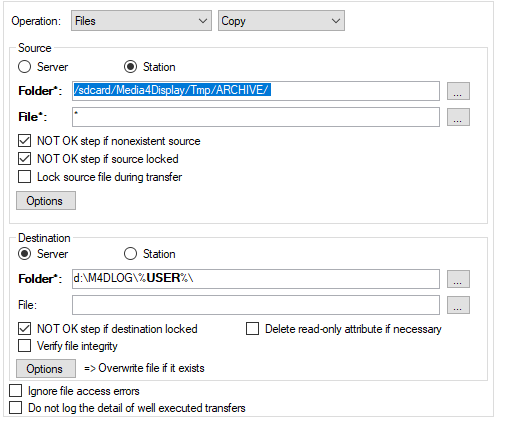

The second step (GET M4DLOG) is a Specific Transfer task
The task detail is:
Operation: Files | Copy
  1. Source: Station
    1. Folder: /sdcard/Media4Display/Tmp/ARCHIVE/
    2. File: *
  2. Destination: Server
    1. Folder: D:\M4DLOG\%USER%



Please replace the Server side folder with a folder on your server where you want to receive the log files. the %USER% make it possible for MediaContact to create a folder for each player/station.
